SRS


In a context of constant technological evolution and industrial innovation, a revolutionary solution is born to optimize production processes.

Progetto senza titolo.png

Innovation and precision

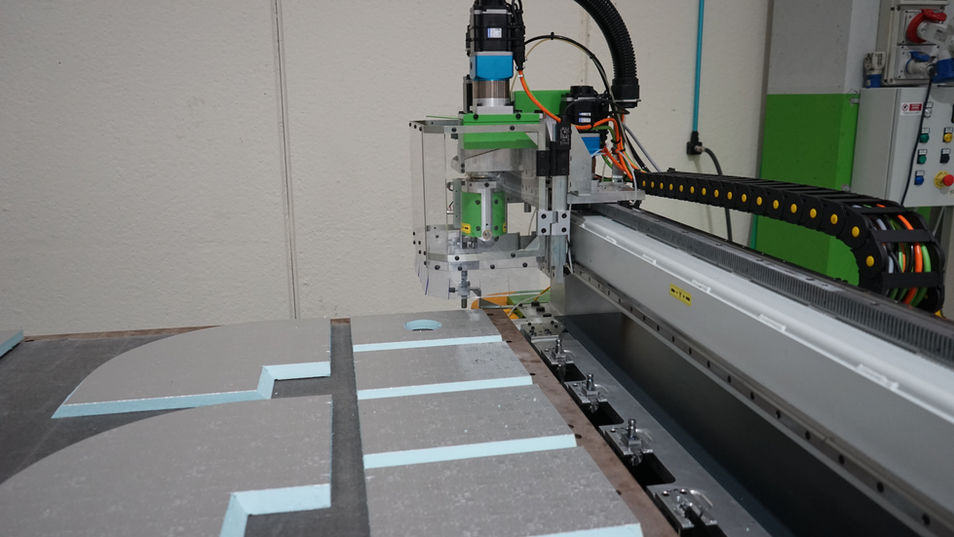

SRS represents a cutting-edge evolution in the world of 5-axis CNC machines, designed to ensure superior precision and efficiency thanks to the innovative single tilting blade system.

Unparalleled efficiency

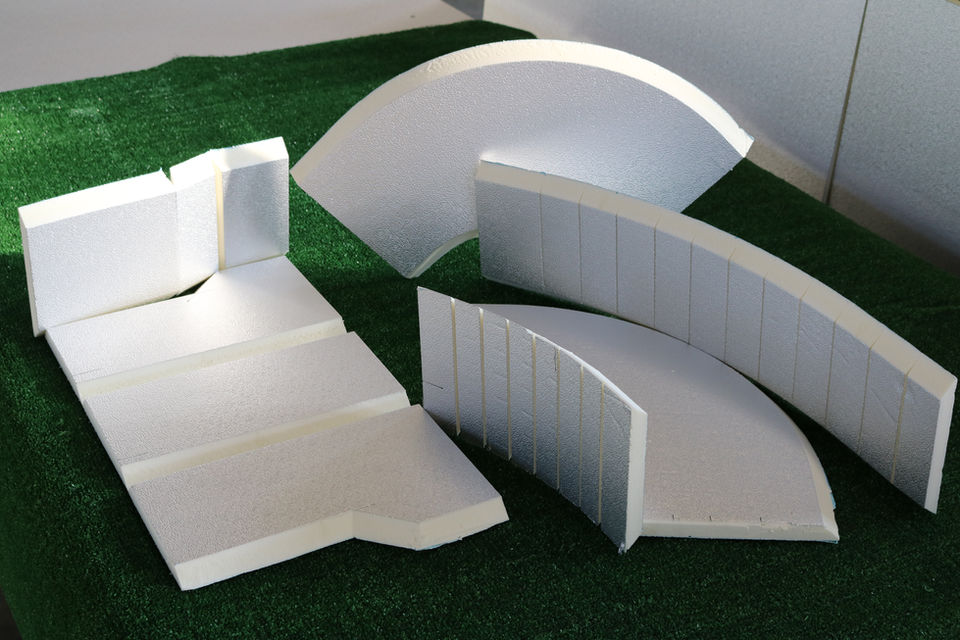

Equipped with automatic tool changer, this advanced solution allows to obtain any finished piece, perfect and ready for gluing, reducing panel processing waste by about 15% compared to traditional milling machines.

Quality and convenience

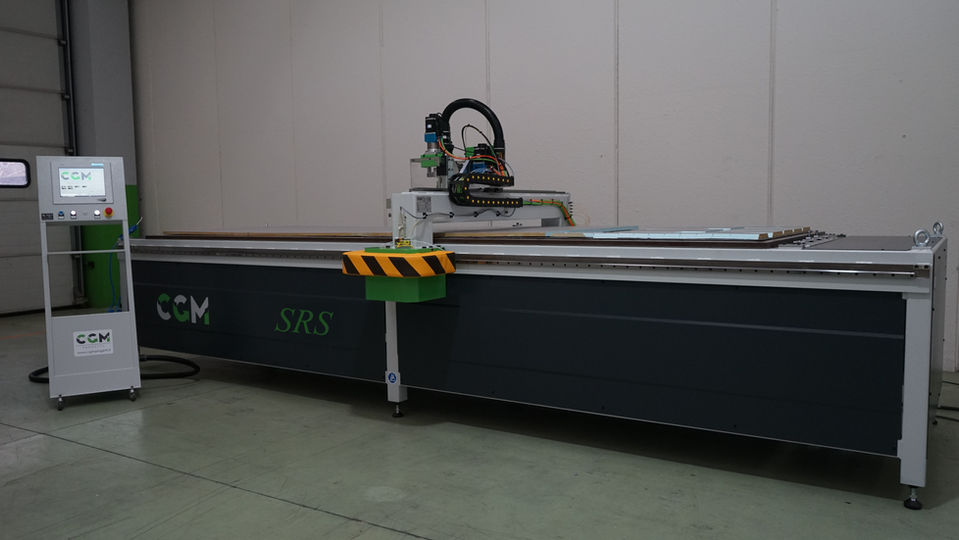

SRS combines a fixed table with a moving gantry that slides along the X-axis and a carriage with a moving head assembly on the Y-axis, using precision rack-pinion-reducer systems. This advanced configuration ensures fast and precise machining, meeting the highest demands of our customers.

Download the catalog

Technical specifications

CNC cutting machine Mod. PENTAX

Min panel thickness 10mm

Max panel thickness 30mm

Max panel width 1200mm

Max panel length 4000mm

Machine weight ~1680 kg

Assembled line dimensions 520x240x h. 130 cm

  • Basic CNC machine for the movement of XYZWC axes controlled by Brushless motors

  • Automatic 4-position tool changer to select the blade suitable for the type of panel and/or product being processed

  • Bakelite worktop, squared at 50mm intervals, with selectable vacuum in two distinct areas

  • Manually operated centralized lubrication system

  • Depression system connected to two pumps with a flow rate of 310 m3/h

  • On two sides of the plane a set of three retractable stops ensure a mechanical zero reference.

  • Safety protection

  • Centralized electrical system in a cabinet integrated into the machine and of adequate size to accommodate it

  • Numerical Control with Ethercat system, installed on a mobile pulpit

  • CutExpert parametric software dedicated to the creation of pre-insulated panel channels

  • Basic CNC machine for movement of X-Y-Z-W-C axes driven by Brushless motors

  • Automatic 4-position tool changer to select the right blade for the type of panel and/or product being machined

  • Bakelite worktable, squared at 50mm center distance, with selectable vacuum in two separate areas

  • Centralized, manually operated lubrication system

  • Vacuum system connected to two pumps with a capacity of 310 m3/h

  • On two sides of the table, a set of three retractable stops ensure a mechanical zero reference

  • Safety protection

  • Centralized electrical system in a cabinet integrated into the machine and of adequate size to accommodate it

  • Numerical control with Ethercat system, installed on a movable pulpit

  • CutExpert parametric sw dedicated to making pre-insulated panel ducts

What does the standard machine include?

What does the standard machine include?

What does the standard machine include?

Find out what the standard machine includes: - Basic CNC machine for movement of X-Y-Z-W-C axes driven by Brushless motors; - Automatic 4-position tool changer to select the right blade for the type of panel and/or product being processed; - Bakelite worktable, squared at 50mm center distance, with selectable vacuum in two separate areas; - Manually operated centralized lubrication system; - Vacuum system connected to two pumps with a capacity of 310 m3/h; - On two sides of the plane a set of three retractable stops ensure a mechanical zero reference; - Safety protection; - Centralized electrical system in a cabinet integrated into the machine and of adequate size to accommodate it; - Numerical control with Ethercat system, installed on a movable pulpit; - CutExpert parametric sw dedicated to making pre-insulated panel channels.

Find out what the standard machine includes:

  • Basic CNC machine for movement of X-Y-Z-W-C axes driven by Brushless motors;

  • Automatic 4-position tool changer to select the right blade for the type of panel and/or product being processed;

  • Bakelite worktable, squared at 50mm center distance, with selectable vacuum in two separate areas;

  • Manually operated centralized lubrication system;

  • Vacuum system connected to two pumps with a capacity of 310 m3/h;

  • On two sides of the plane a set of three retractable stops ensure a mechanical zero reference;

  • Safety protection;

  • Centralized electrical system in a cabinet integrated into the machine and of adequate size to accommodate it;

  • Numerical control with Ethercat system, installed on a movable pulpit;

  • CutExpert parametric sw dedicated to making pre-insulated panel ducts.
